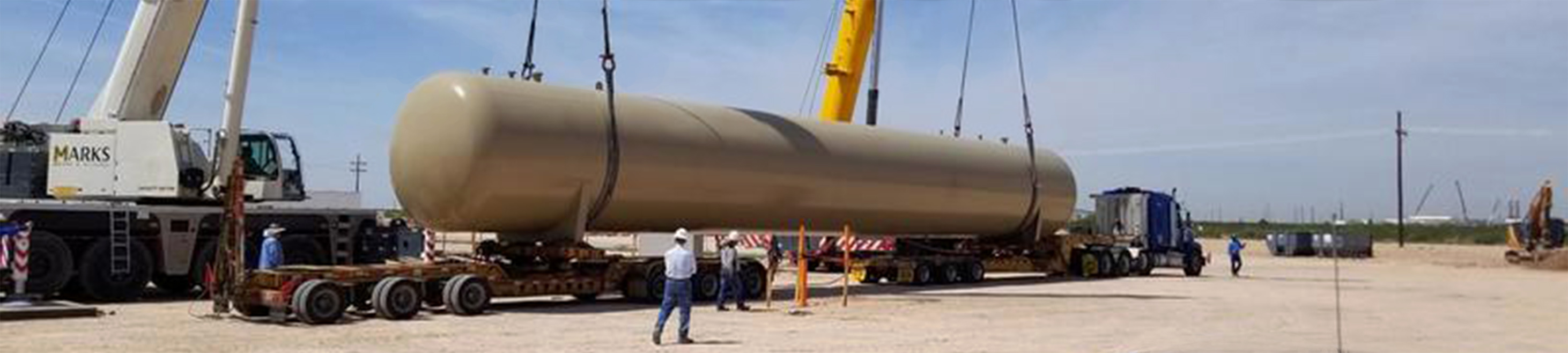

• ASME Surge Vessel Engineering Fabrication Installation






    Surge Tanks
    Fabrication Services

Surge Tanks - Fabrication

CUSTOM SURGE TANK FABRICATION

TransTech Fabrication delivers top-quality surge tanks, designed and fabricated to your specific, custom configurations for storing liquid hydrocarbons following separation. Surge tank options include single or dual compartments and can be designed and fabricated to accommodate a wide range of volumes and pressures.

Surge tanks are designed to address unpredictable pressure changes by neutralizing both sudden pressure increases and sudden pressure drops, to prevent system failures and blowouts.  Often referred to as calibration or gauge tanks, surge tanks are also effective for measuring liquid flow rates and can provide an alternative method for measuring shrinkage and meter factor of produced crude oil.

Our surge tanks can additionally be used as a second stage, two-phase separator when fitted with optional gas and fluid metering.  Surge vessels can be particularly well suited for this purpose when a longer retention time is needed for effective separation of gas and fluids.

Our surge tanks can be customized to your exact specifications to suit a broad range of applications and offer operational flexibility including bypassing and/or co-mingling of gas, oil or water.

CONFIGURATION OPTIONS

We offer both single- and double-compartment vessels as needed. Dual compartment tanks allow independent compartment operation providing the ability to empty one tank compartment while filling another.

All our surge tanks can be equipped with pressure relief valves and level alarms to prevent overfilling. Tanks can also be fitted with temperature, pressure and sampling ports, as well as a bypass manifold.

Our experienced team of engineering and fabrication professionals will deliver your surge tanks to your exact specifications, within the shortest possible lead time and at the best possible price.

AVAILABLE FEATURES & BENEFITS:

  • Measurement of liquid flow rates, shrinkage and meter factors
  • Can be used as second stage separator
  • Single or double compartment




  • Sample point, pressure and temperature ports
  • Available in a wide array of configurations, sizes, and pressure
    ratings to meet your specific needs
  • Large in-stock inventory yields short lead times and fast delivery
  • Fully ASME compliant to ensure top performance and safety
  • Measures liquid flow rates, shrinkage and meter factors
  • Sight glasses or magnetic level indicators
  • Back pressure controller
  • Diverter and vortex breaker
  • Magnetic level indicators or calibrated sight glasses
  • Separate drain outlet with isolation valve
  • High and low level alarms
  • Pressure, temperature and sampling ports
  • Safety relief valve
  • Bypass manifold to enable isolation
  • Optional CSC certified, ISO rated frame and skid allows for stacking of units and provides added mobility
  • Heating coils available
  • Access man-ways
  • All finished surge tanks are tested and certified, National Board code stamped and registered.

IN-STOCK, NEW & USED ASME PRESSURE VESSELS

With one of the most extensive inventories of new and used ASME pressure vessels in the countrywe’re able to offer a wide array of options for addressing your surge tank needs—and tremendous flexibility in addressing your project schedule and budget requirements.

CONTACT US

Contact us today to speak with one of our surge tanks fabrication experts at: 1-888-206-4563 —or click to contact us below:

Contact Us

FREE ASME Pressure Vessel Material Analysis - MAWP - Max Allowable Working Pressure Guidance

FREE Preliminary Vessel Material Analysis

Without the right data to optimize your vessel design, it's easy to miscalculate design pressure by overcompensating for MAWP.  This can lead to incorrectly sized vessels and other  issues including unnecessary costs, underperforming assets—and disappointing ROI,

Let our AMSE vessel design experts assist you with a FREE preliminary material analysis!  We'll help you determine the right material grade & thickness for your pressure rating for optimal vessel performance, often leading to:

  • Reduced overall vessel weight—and cost
  • More economical constructability
  • More!
