LPG/Propane Porta-Pacs

PORTABLE NGL & LPG/PROPANE STORAGE TANK SYSTEMS

Do your storage demands sometimes require a short-term or portable solution?  Are you on a temporary site with a possible plant relocation on the horizon?

TransTech Energy offers solutions to your portable storage and transfer needs with custom skid-mounted and portable tank systems (Porta-Pacs).

We offer fast-ship, standard configurations and we can also custom design and fabricate a skid mounted sytem to your exact specifications.

Purchase, Rental and Lease Options are available.

WHAT YOU GET

Our turnkey skid-mounted units include the bulkhead for both transport and bobtail operations, optional integrated liquid pump, optional electronic controls and metering, and everything else you may require.

Porta-Pacs tank sizes range from 7,500 to 18,000 gallons.

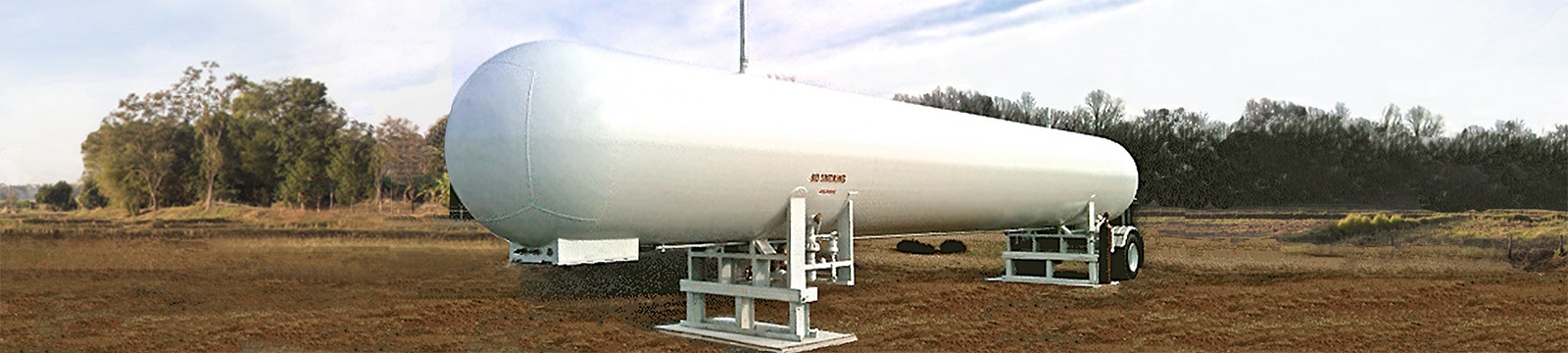

Our Porta-Pacs Systems include a portable storage unit that incorporates either a single or dual axle tire system along with built-in king pin system that enables the skid to be hooked up to any standard heavy duty tractor.

Also included is a set of steel saddle supports that can be mannually lowered when in operation—and easily stored in an upright position when being transported.

Bulkheads have tripod breakaway systems incorporated into them to properly shut-off the flow of product in the event of a pull-away.

Also included is a set of steel saddle supports that is mannually lowered when in operation—and easily stored in an upright position when being transported.

LOADING OPTIONS

Loading can be done through

• Self Loading When cargo tank vehicles are outfitted to support self loading
• Dual bulkhead system which allows for bobtail loading/unloading from one side and tank transport from the other.
• Trans-flow with the use of a mobile compressor unit.  (Learn more about compressors here).

We offer standard configurations and can custom design and fabricate a Porta-Pac to your specifications.

Contact us today at 888-206-4563 for more information and to learn how one of our Portable Systems can help with your temporary storage needs.
