Moving NGLs or LPG?
We’ve got everything you need.



• Loading/Unloading
• Custody Transfer
• Transloading

NGL, LPG/Propane, Butane Transfer Skids & Transloading Solutions

LIQUID TRANSFER SKIDS AND TRANSLOADERS

TransTech Energy can provide stock or custom designed prefabricated liquid transfer skids for NGL, LPG/Propane, Butane and other hydrocarbons.  Each skid is built to meet or exceed the requirements of the latest edition of NFPA pamphlets 58 and 59 and ready to be put into immediate service upon arrival at your facility.

Our Liquid Transfer Skids are available with pre-piped pumps or compressors to maximize your liquid transfer operational efficiency.  We utilize Corken and Blackmer liquefied gas pumps and compressors that carry a UL listing for LPG, Butane and Anhydrous Ammonia when provided with Buna N 0-rings and seals. Other 0-ring polymers are available based on application and product being transferred.

If your application requires liquid measurement, we can incorporate a metering solution based on your needs. Whether it is for inventory or custody transfer and requires weights and measures approval, our engineering team will incorporate the measurement solution based on your specific requirements.

We offer a wide range of custom engineered and manufactured NGL and LPG custody transfer systems to meet your exact specifications. Skids are built to meet or exceed the latest edition NFPA 58 and 59 requirements and are fully tested prior to shipping and ready to be placed into immediate operational use upon arrival at your facility.

Field commissioning/start-up, training and maintenance services also available.and Pressure Vessel Code, Section VIII, Division I, II & III. Modular NGL

ALL TRANSTECH LIQUEFIED GAS TRANSFER SKIDS FEATURE:

  • A53 Seamless Pipe
  • High Capacity Flow Rate Design
  • Fully Painted with Color Coded
  • Liquid and Vapor Lines
  • All Valving is either UL Listed or Meets API 607 Requirements
  • Valving is Available with Various O-ring/Seat/Seal Materials for Specific Applications
  • Each Skid is Pressure Tested Prior to Leaving Our Facility
  • Pneumatically Actuated Emergency Shut-Off/Control Valves are Standard
  • Where Required Pressure Tested UL Listed Hoses are Provided
  • Optional integrated instrumentation, electrical, controls, and metering

Backed by over five decades of experience in fluid transfer, measurement and storage solutions, TransTech Energy delivers world-class solutions for optimal operations and safety.

LARGE SCALE PROJECTS

We also offer end-to-end delivery of full-scale truck, rail and marine terminal solutions to meet all your liquids handling, storage and transfer needs.

CONTACT US

Call us today to speak with one of our NGL, LPG Propane loading/unloading and storage experts at 1-888-206-4563

Select the Features You Need to Suit Your Application

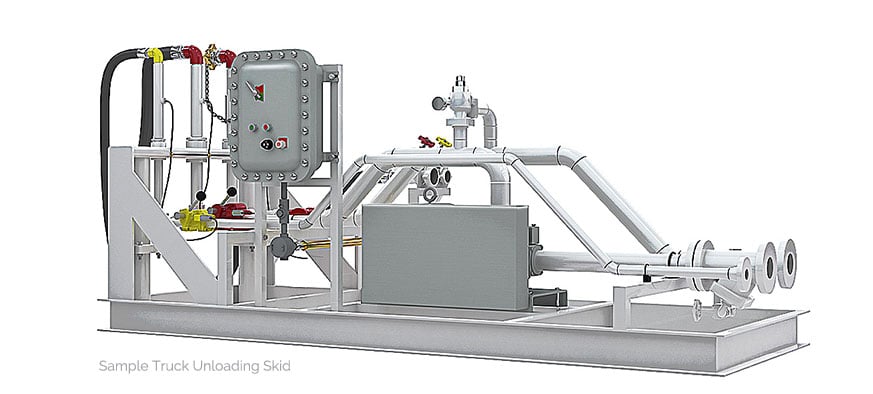

TTE Model BTDS sample truck unloading skid

BREAK-AWAY NIPPLES - Prevent damage to piping and valves in case of accidental pull-away.

PNEUMATIC ACTUATION - Installed to code and tested prior to shipment to ensure safety.

HOSE RACK - Keep hoses out from underfoot - for safer operation.

STEEL STANCHION - Hefty 10” steel channel protects against accidental truck pull-aways.

EMERGENCY SHUT-OFF VALVES - Minimize liquid and vapor loss in the case of emergency.

POSITIVE SHUT-OFF VALVES - Manually operated shut-off valves at skid.

A106 SEAMLESS PIPE - 3” piping allows for rapid loading up to 600+ GPM.

PRE-FABRICATED SKID BASE High quality, structural strength and long life.

Liquid Transfer Skids Brochure

LIQUID TRANSFER SKIDS

Download our FREE Liquid Transfer Skids Brochure

Download Now
Transloaders Brochure

TRANSLOADERS

Download our FREE Transloaders Brochure

Download Now
