Portable NGL & LPG Propane Storage Tank Systems

Do your storage demands sometimes require a short-term or portable solution?  Are you on a temporary site with a possible plant relocation on the horizon?  TransTech Energy offers solutions to your portable storage and transfer needs with custom skid-mounted and portable tank systems (Porta-Pacs).  Purchase, Rental and Lease Options are available.

Our turnkey skid mounted units include the bulkhead for both transport/bobtail operations, optional integrated liquid pump, optional electronic controls and metering, and everything else you  may require in a functioning bulk storage facility.   We offer standard configurations and can custom design and fabricate a skid mounted sytem to your specifications.

Skid Mounted Storage Systems tank sizes range from 12,000 to 30,000 gallons (wc).

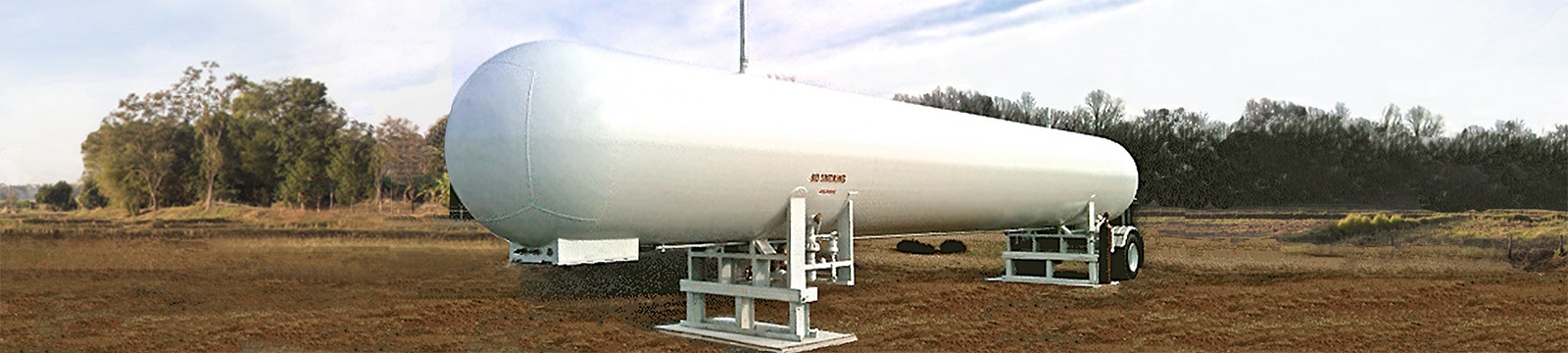

Our Porta-Pacs Systems are a portable storage unit that incorporates either a single/dual axle tire system and a king pin system that enables to hook up to any standard heavy duty tractor.  It includes a set of steel saddle supports that can be mannually lowered when in operation and easily stored in an upright position when being transported.

Porta-Pacs include a single or dual style bulkhead for both transport/bobtail operations.  Bulkheads have tripod breakaway systems incorporated into them to properly shut-off the flow of product in the event of a pull-away. Loading can either be done through self loading when the cargo tank vehicle is set up correctly; trans flow with a use of dual bulkhead sytem from oneside with a bobtail to the otherside where the transport can be loaded/unloaded; and also with the use of a mobile compressor unit as (see Mobile Compressors page).

We offer standard configurations and can custom design and fabricate a Porta-Pac to your specifications. Porta-Pacs tank sizes range from 7,500 to 18,000 gallons (wc).

Contact us today at 888-206-4563 for more information and to learn how one of our Portable Systems can help with your temporary storage needs.
